Sandwich panel manufacturer suppliers's Dubai | UAE | Oman | Saudi | Qatar | Tanzania

Sandwich panel suppliers and manufacturer – Globe Metals UAE has sandwich panel factory in Ajman, UAE. We supply panels all over GCC, UAE and KSA – Oman, Saudi, Qatar, Dubai, Ajman, Tanzania, Kenya, Djibouti, Sudan, Gabon etc., these are all manufactured under Ghosh Group banner.
You will always get a great price and offer from us. Our Expert team can customized and deliver the orders at door step.

Our Sandwich Panel dimension:

Top Skin Detail:
GMI 45/250 mm & GMI 35/200 mm

Bottom Skin Detail:
Color coated steel sheet
Galvanized Pre Painted
Low Rib Profile of Galvanized Mill Finish,
Alu Zinc PVDF and Polyester Coated Alloy Steel
AluZinc
Mill finish aluminium
Aluminium Polyester Coated
GI PVDF Coated
Color coated Aluminium Profile
GI Polyester Coated
Aluminium Foil as bottom
Aluminium PVDF Coated

Profile we use:
Galvanized Mill Finish
Aluminium Polyester Coated
Color coated Steel Sheet
Galvanized Pre Painted
Aluminium PVDF Coated
AluZinc
Color coated Aluminium Profile
GI Polyester Coated
GI PVDF Coated
Mill Finish Aluminium
Alu Zinc PVDF
Polyester Coated Alloy Steel

Thickness specs:
Top and Bottom Sheet: – 0.40 mm to 0.90 mm of the
Width of the Sandwich panel: 1050 mm
Covering Width of the sandwich panel: 1000 mm
The length of sandwich panel might go up to 12 mt

As mentioned we manufacture and supply customized sandwich panels roof / wall according to our customer orders all over UAE | Ajman | Dubai | Oman | Saudi | Qatar | Gabon | Tanzania | Kenya | Djibouti | Sudan – and all surrounding countries in Africa and Middle East. We are well known in these region as quality sandwich panel suppliers.

Grade specs:
Aluminium Alloy: 3105, 3003, 1100, 1050
Aluminium Prepainted and Mill Finish color coated
Temper: H16
Galvanized Steel Coil As per ASTM A653
Lock forming quality with Zinc coating from G60 to G90 or 180 to 275 GSM

Top Paint: 5 Micron Primer + 20 Micron paint (5+20 Micron)
Bottom Coat: 5 Micron Primer + 7 Micron Paint (5+7 Micron).
Alu Zinc ASTM A792 with Zinc Coating Z80 to Z220
Top Paint: 5 Micron Primer + 20 Micron paint (5+20 Micron)
Bottom Coat: 5 Micron Primer + 7 Micron Paint (5+7 Micron)

RAL color of Sandwich Panel Roof / Wall

RAL 5002 – EMMAR Blue
RAL 1014 – Light Beige
RAL 9002 – Off White
RAL 1001 – Beige
RAL 6029 – Light Green and more
RAL 5012 – Light Blue
RAL 5010 – Dark Blue
RAL 7046 – Dark Grey
RAL 7036 – Grey
RAL 7037 – Grey
RAL 1015 – Ivory
RAL 9003 – White
RAL 2004 – Orange
RAL 9010 – Pure White
RAL 3002 – RED
RAL 3020 – RED
RAL 7015 – Grey
RAL 6038 – Green and more

Under Ghosh Group factory – we manufacture and supply sandwich panel roof / wall in Dubai | Ajman | UAE | Qatar | Saudi | Oman | Sudan | Tanzania | Djibouti | Kenya. We also supply the panels with customized color as per the requirement of our customers.

PU Thickness:
30 mm to 150 mm
Standard PU thickness: 50 mm/75mm/100mm for roof & wall sandwich panel
Metal PU Foam Polyurethane B2, B3, Polyisocynaurate PIR and Rockwool
PU density 35 to 38 Kg

Sandwich Panel Detail

We use both side low rib sheet of galvanized and aluminium mill finish and pre painted – these can be customized as per our customer choice. The standard sandwich panel wall thickness is normally 50 mm to 100 mm again this can be changed according to our customer requirements.
Sandwich panel are mainly installed on the base of galvanized cold formed Z and C Purlin and are fixed on the Z and C Purlin with self tapping screw and self drilling screw.

Globe Metals UAE under Ghosh group has supplied & manufactured quality sandwich panels which are used as roof for shopping mall, schools, labour camps. Our panels are also used in Portacabin, PreFab houses and to make cold rooms. These sandwich panels mainly protect the buildings, room’s etc from the heat, cold and rains.

Sandwich panels which we manufacture and supply are used in construction of roof panels and are mainly installed on the base of Galvanized Cold Formed C and Z Purlin.

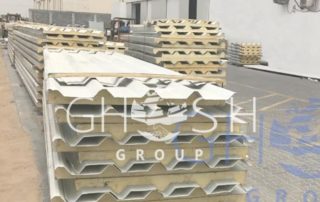

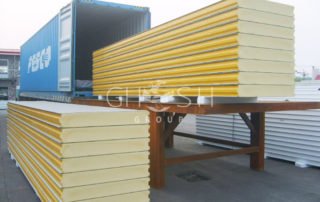

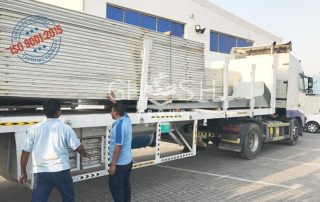

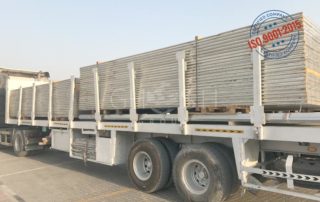

Globe Metals UAE, Ghosh Group – Some Sandwich Panel Photos

sandwich panel suppliers Dubai UAE Oman qatar Saudi Tanzania

If you have any queries or need a customized sandwich panel roof / wall then kindly contact our team for prompt reply on +971 553 258 409 or email sandwich panel dimension on [email protected]
